RockShox Deluxe Select+ shock with 140mm Suntour XCR34 Air fork, 1 x 11 Shimano Deore drivetrain with Race Face Ride chainset. Tektro 4 pot hydraulic disc brakes and dropper post.
The One-Forty 400 brings an unheard of level of climbing and descending performance into a high-value package built around an all-new aluminium frame. Its got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from RockShox and Suntour gets the job done without fuss.

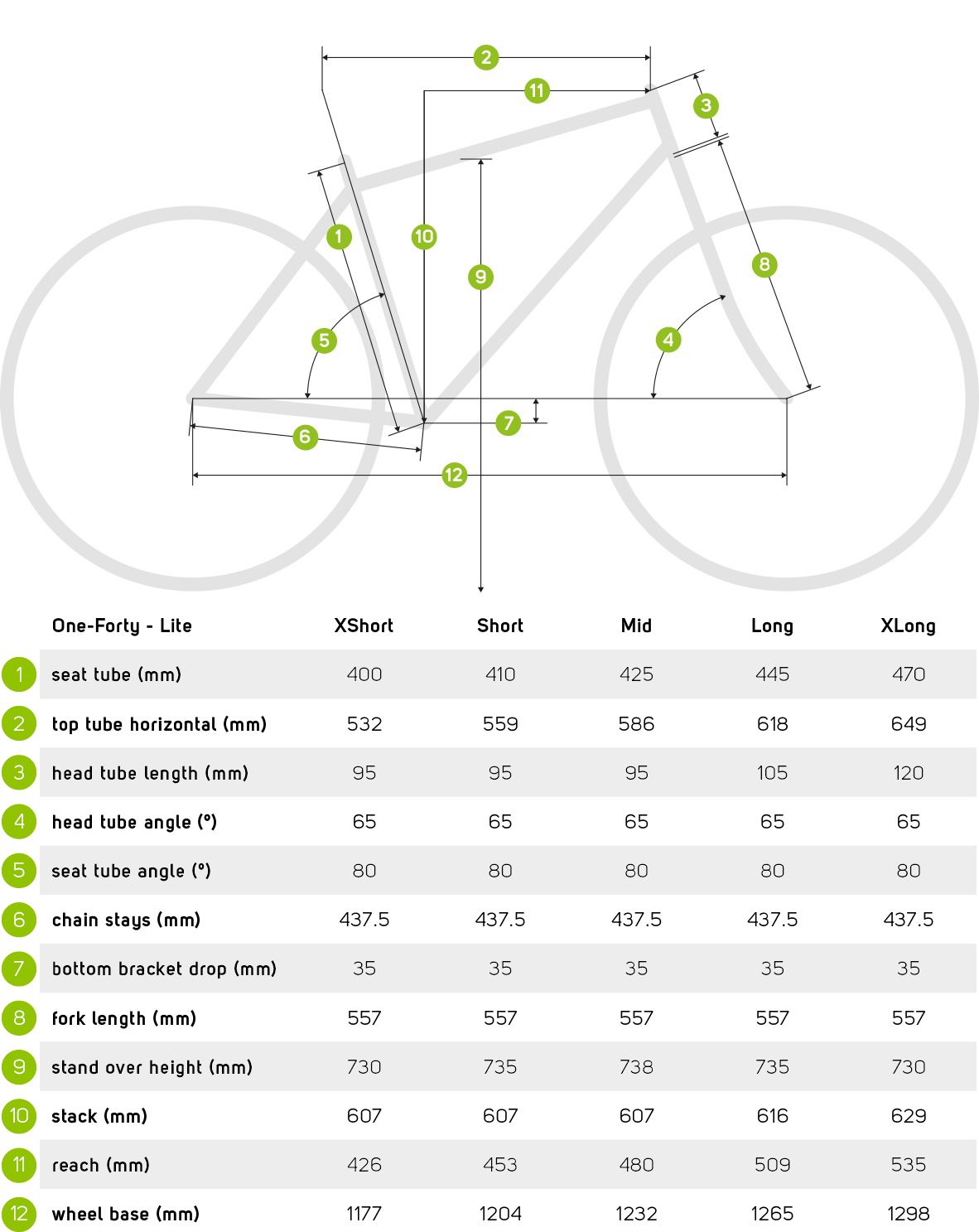

The new Merida One-Forty is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With Meridas new Agilometer sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. Meridas enginners have focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, Wire Port cable routing and a reliable threaded bottom bracket plus carbon frame models have on-board tool storage and FidLock magnetic bottle cages.
Highlights:
- Full aluminium frame with FAST kinematic suspension and Agilometer sizing
- Radical new trail geometry with full 29er wheels
- Suntour and RockShox suspension, 150mm front, 143mm rear
- Wide-range Shimano 11-speed drivetrain
- 200mm dropper post on XL/L/M, 150mm on S, 125mm on XS
- Powerful 4-piston hydraulic disc brakes
| Frame |
Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5
|
| Shock |
RockShox Deluxe Select+; lockout
|
| Fork |
Suntour XCR34 LOR DS; Air; Boost; 140mm; Tapered; 51mm fork offset; Max. tyre size: 29 x 2.4
|
| Gears |
11 |
| Shifters |
Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever
|
| Rear Derailleur |
Shimano Deore M5100 Shadow+ |
| Bottom Bracket |
Race Face BSA 68/73 – 24mm |
| Chain |
KMC X11
|
| Chainset |
Race Face Ride; 32 tooth chainset. Crank length: 170mm-S, 175mm-M up |
| Cassette |
Shimano Deore M5100; 11-51 teeth; 11 speed |
| Brake Lever |
Tektro HD-M745
|
| Front Brake |
Tektro HD-M745; 4 piston hydraulic disc brake caliper with Tektro TR203-35; 203mm rotor |
| Rear Brake |
Tektro HD-M745; 4 piston hydraulic disc brake caliper with Tektro TR203-35; 203mm rotor |
| Grip |
Merida Comp EC
|
| Handlebar |
Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Stem |
Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point. |
| Headset |
Merida 8158 1-1/8-1.5 cartridge bearing |
| Pedal |
Not Included |
| Saddle |
Merida Comp SL; V-mount
|
| Seatpost |
Merida Expert TR II; 34.9mm diameter; in-line; Drop: 125mm (XS), 150mm (S), 200mm (M/L/XL) |
| Wheel Size |
29 / 27.5 |
| Rims |
Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included) |
| Spokes |
Black stainless |
| Front Hub |
Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub |
Shimano MT400-B; 148x12mm; 32 spokes; Center lock. With Merida Comp TR axle including removable lever, 6mm allen key |
| Front Tyre |
Kenda Regolith; 29 x 2.4; wire bead |
| Rear Tyre |
Kenda Regolith; 29 x 2.4; wire bead |
